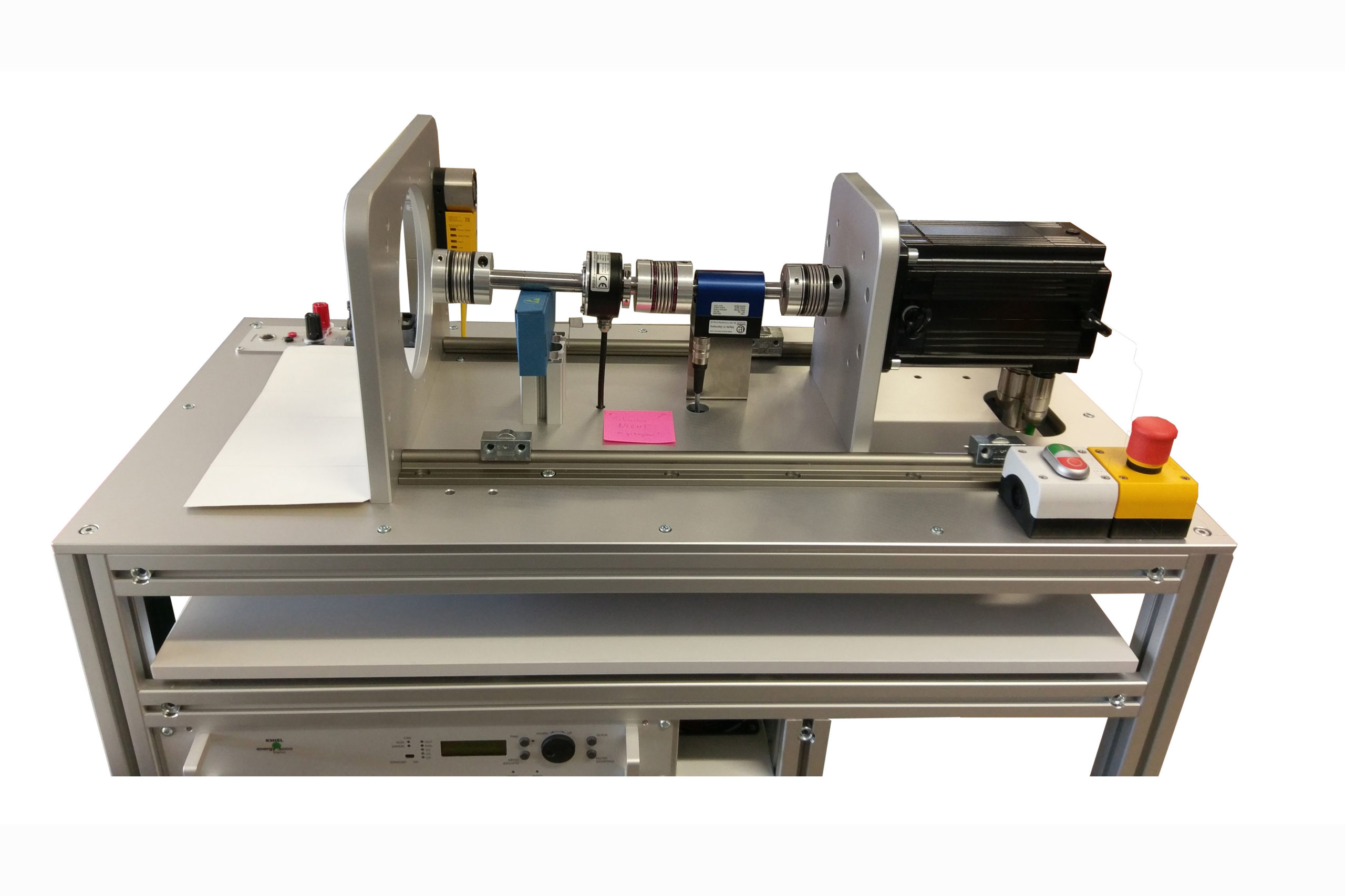

Highly dynamic characteristic test bench for wiper and garage door motors.
Compact, mobile test vehicle.
Highly dynamic load on the test object in 4-quadrant operation with up to 35 Nm and up to 6000 revolutions per minute.
Regulated power supply with adjustable current limitation. Measurement of torque, speed, current consumption and temperature.
Graphical user interface, individual test programs and documentation of the measurement results.
Endurance test bench for wiper motors
Endurance test bench for ten engines, divided into 3 separate sections.
Load on the motors by hysteresis brakes. Individual control of each test station.
A separate mini-PC per test station enables fast measurement data acquisition of voltage, current, temperature, test object-specific output signals, speed and angle.
A higher-level master PC is used to manage the individual mini PCs, the test programs and the measurement results.

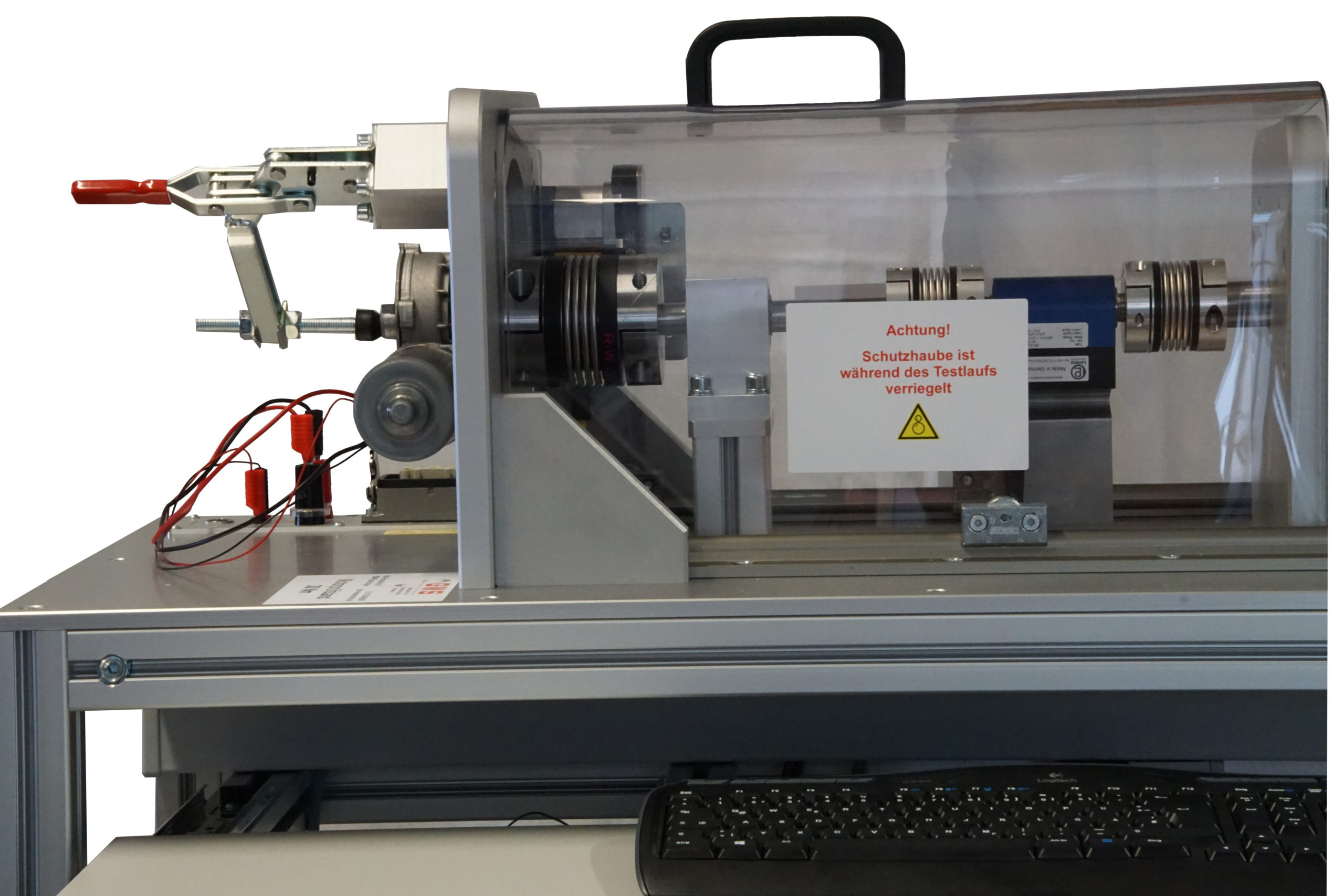

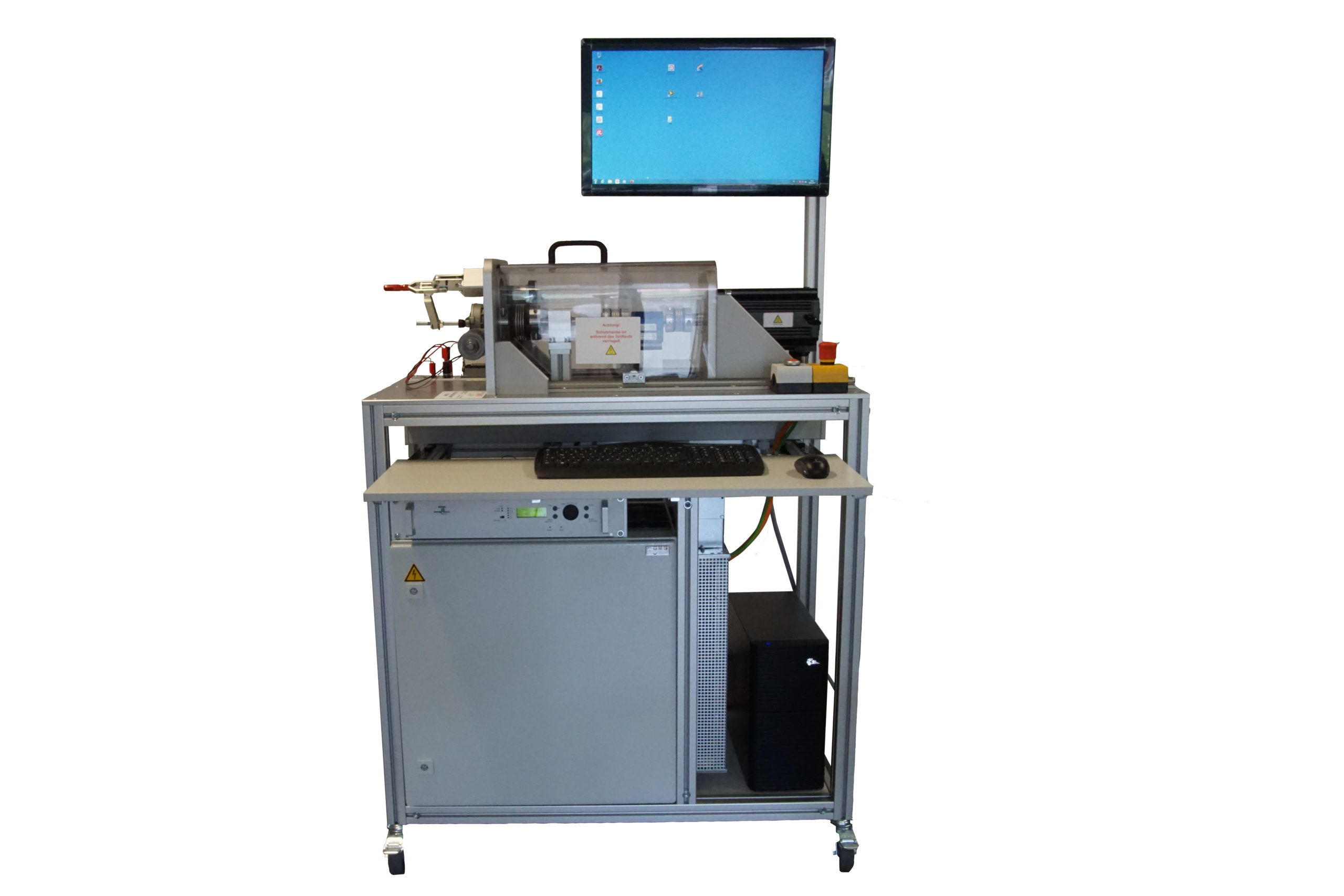

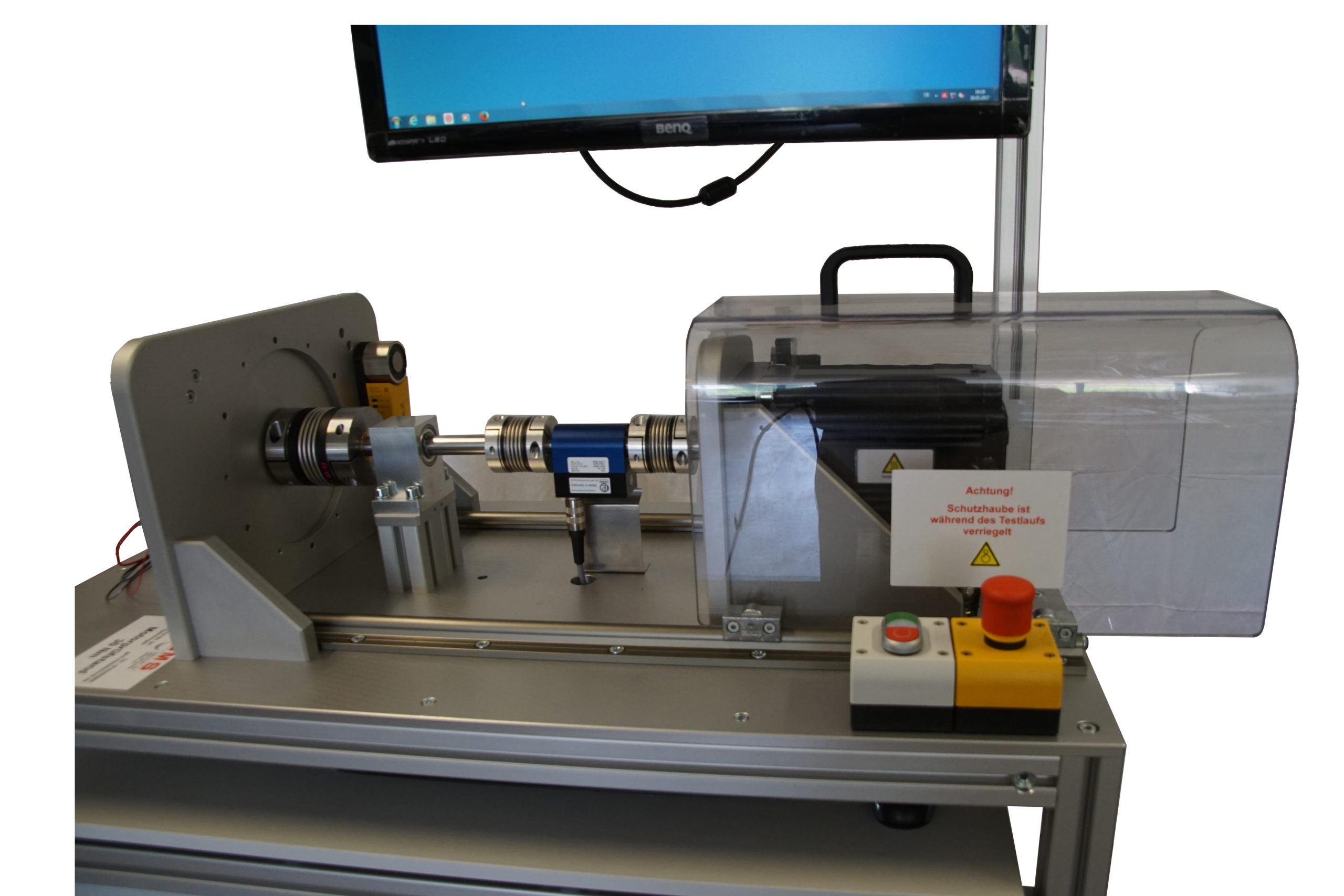

Powerful characteristic test bench for wiper motors
Mobile test trolley made of aluminum profiles. Integrated voltage supply for the test object.
Axially adjustable holder for the test specimen and assembly via adapter plates to cover the greatest variety of variants.
Setup-friendly concept by fixing the test specimen with centering pins and clamping levers.
Characteristic curve recording of torque, speed, current and voltage.
Integrated computer with customer-specific test programs, GUI and result file management.
Multi-technical test bench for e-bike engines
Individual, asynchronous application of force (cyclist simulation) using two highly dynamic servo motors.
Maximum flexibility via axially movable drive units with a modular structure and upgradeable inertia.
Test booth can be tempered from -20 to +60 ° C by external cooling-heating-blower module. Admission of the test object adjustable 360 °.
Load unit with servo motor can be adjusted radially and axially. EMC-compliant shielding of the converter by steel enclosures.
Measurement technology integrated in the double 19 “rack with extensive front connection panel.
Impulse characteristic curve load test for industrial door drives
Compact, mobile test vehicle.
Highly dynamic impulse load of the test specimen in 4 quadrant operation up to 1000 Nm and angle-controlled process.
For AC and DC industrial gate operators. Lifetime test with spring break simulation.
Measurement of torque, speed, current consumption and temperature.
Flexible digital interface to the test unit's control unit.
Graphical user interface, individual, expandable test programs and documentation of the measurement results.
